STAR DELTA PLUS 1

STAR DELTA PLUS 1

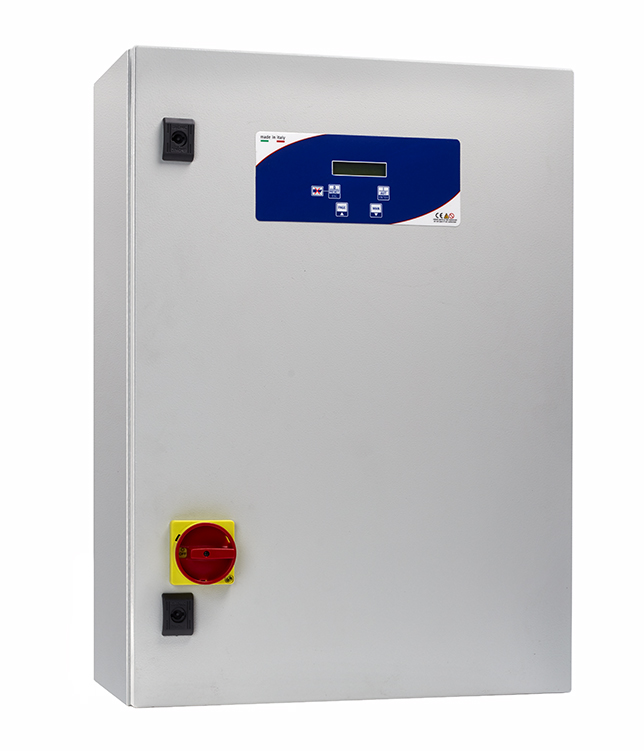

Star delta starting electronic control panel 1 motor for the dry running control, clean water and sewage with display

  • Multi application control panel
  • Motor’s data auto learning
  • Well adaptive filling system
  • Events and alarms data logger
  • Protection for motherboard
  • Remote control SALUPO CONNECT
Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnecting switch with door lock
  • Button for automatic operation
  • Button for manual operation (stable/unstable)
  • Siren shut-off button
  • Adjustable star delta timer
  • Auxiliary circuit protection fuse
  • Motor protection fuse
  • N°3 contactors
  • Connection terminal board
  • External metal box
  • Protection degree IP55
  • Operating temperature -5/+40°C

ADVANTAGES

  • Multilingual Display LCD to visualize:
    • Operating voltage
    • Current
    • Cosφ
    • Hour counter
    • Level status
    • System pressure with pressure transducer
    • Tank level in meters with piezoresistive probe
    • All information concerning the operation of the motor
  • Motor’s data auto learning:
    • Cosφ
    • Minimum and maximum current
  • Well adaptive filling system
  • Adjustable maximum number of startings per hour
  • Adjustable motor starting test (24-48-72-96h)
  • Dry running with level control, cosφ and minimum current
  • Adjustable probe sensitivity
  • Emptying (1 input)/Filling (2 inputs) function
  • Loss of pressure control
  • Adjustable mains supply returning
  • Siren shut-off
  • Operation with pressure switches, float switches, probes, pressure transducer and piezoresistive probe 4-20mA

INPUTS/OUTPUTS

  • N°4 very low voltage inputs
  • Input 4-20mA
  • Very low voltage input for motor klixon
  • N°2 alarm outputs 12Vdc max 200mA for siren and flashing Led lamp
  • Alarm output max 5A NC-COM-NO (pure contact)

PROTECTIONS

  • Maximum and minimum current protection with alarm
  • Lack and sequence of phases protection with automatic resent and alarm
  • Minimum and maximum voltage protection with automatic reset and alarm
  • Motor klixon protection with automatic reset and alarm

THREE-PHASE 400Vac ± 10% 50/60Hz
CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ687.00/SD STAR DELTA PLUS 1 400 7,5 5,5 7,5 10÷17 500 400 230 15 50
SQ687.01/SD STAR DELTA PLUS 1 400 10 7,5 10 13÷21 500 400 230 15 50
SQ687.02/SD STAR DELTA PLUS 1 400 12,5 9,2 12,5 19÷26 500 400 230 15 50
SQ687.03/SD STAR DELTA PLUS 1 400 15 11 15 22÷30 500 400 230 15 50
SQ687.04/SD STAR DELTA PLUS 1 400 17,5 13 17,5 25÷33 500 400 230 15 50
SQ687.05/SD STAR DELTA PLUS 1 400 20 15 20 32÷40 500 400 230 16 50
SQ687.06/SD STAR DELTA PLUS 1 400 25 18,5 25 38÷50 500 400 230 16 50
SQ687.07/SD STAR DELTA PLUS 1 400 35 22÷26 30÷35 45÷65 600 400 230 18 60
SQ687.08/SD STAR DELTA PLUS 1 400 40 30 40 60÷75 600 400 230 19 60
SQ687.09/SD STAR DELTA PLUS 1 400 50 37 50 65÷90 700 500 240 20 70
SQ687.10/SD STAR DELTA PLUS 1 400 60 45 60 70÷105 700 500 290 35 80
SQ687.11/SD STAR DELTA PLUS 1 400 75 51,5÷55 70÷75 75÷110 800 600 290 36 80
SQ687.12/SD STAR DELTA PLUS 1 400 80 60 80 80÷150 800 600 290 38 80
SQ687.13/SD STAR DELTA PLUS 1 400 90 66 90 80÷150 1000 600 370 49 101
SQ687.14/SD STAR DELTA PLUS 1 400 100 75 100 90÷180 1000 600 370 52 101



OPTIONALS
CODE TYPE
OP100.29/B On board GPRS expansion
OP100.39/B On board Ethernet expansion
OP100.49/B On board MODBUS RS-485 expansion
OP100.59/B On board Ethernet – WiFi – expansion
OP100.99/B On board expansion to detect water in the oil chamber up to 3 motors
OP100.01 3 level probes kit
OP100.17/024 Wired 24Vac relay complete with socket
OP100.05/1 Wired three-phase surge arrester type 2
SS100.00 Visual and acoustic alarm indicator (BASIC ALARM VA012)
AC300.11.10-004.20 Pressure transducer 0-10bar 4-20mA with 4m cable
AC300.11.16-004.20 Pressure transducer 0-16bar 4-20mA with 4m cable
AC300.11.25-004.20 Pressure transducer 0-25bar 4-20mA with 4m cable
AC300.20.01-005.00 Piezoresistive probe 4-20mA with 5m cable
AC300.20.01-010.00 Piezoresistive probe 4-20mA with 10m cable
AC300.20.02-010.20 Piezoresistive probe 4-20mA with 10m cable for sewage
For more optionals click here



SPARE PARTS
CODE TYPE
AC100.22/1/50 Display electronic board with flat cable 20pin 50cm
AC100.22/1/80 Display electronic board with flat cable 20pin 80cm
AC100.22/1/100 Display electronic board with flat cable 20pin 100cm
SD687.20/1 Three-phase MULTIPLUS 1 electronic board 20A
SD687.30-40/1 Three-phase MULTIPLUS 1 electronic board 30-40A
SD687.60/1 Three-phase MULTIPLUS 1 electronic board 60A
SD687.100/1 Three-phase MULTIPLUS 1 electronic board 100A
SD687.200/1 Three-phase MULTIPLUS 1 electronic board 200A
