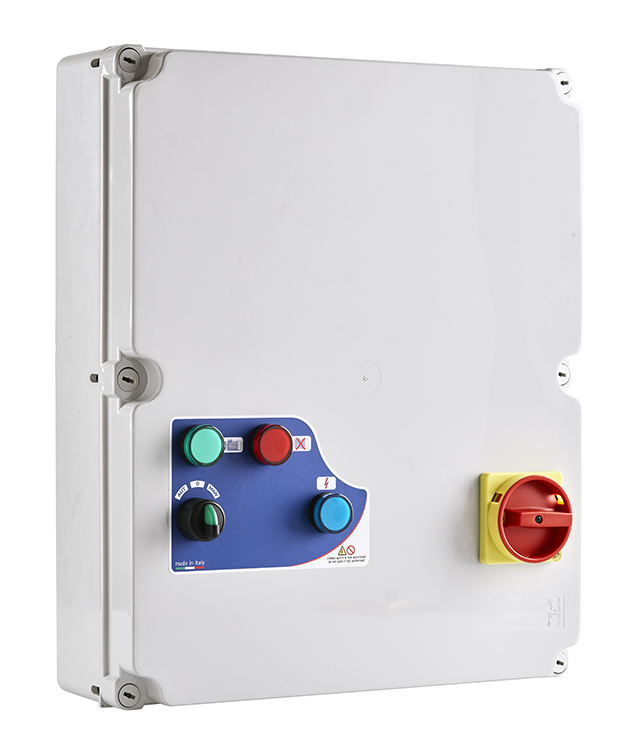

GENERAL SPECIFICATIONS
- Operating voltage 400Vac ±10% 50/60Hz
- General disconnecting switch with door lock
- Selector switch for automatic -0- manual operation (stable)
- Adjustable star delta timer
- Mains supply Led light
- Running Led light
- Overload Led light
- Auxiliary circuit protection fuse
- Transformer for auxiliary circuit
- Motor protection fuse
- N°3 contactors
- Thermal relay (internal reset)
- Connection terminal board
- External thermoplastic box
- Cable glands
- Protection degree IP65
- Operating temperature -5/+40°C
PROTECTIONS
- Maximum current protection with alarm
INPUTS/OUTPUTS
- Very low voltage input for pressure switch or float switch
THREE-PHASE 400Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | MAX | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SQ750.00L | STAR DELTA 1 BASIC 400 7,5 | 5,5 | 7,5 | 14 | 460 | 380 | 150 | 8,3 | 07 |
| SQ750.01L | STAR DELTA 1 BASIC 400 10 | 7,5 | 10 | 18 | 460 | 380 | 150 | 8,3 | 07 |
| SQ750.02L | STAR DELTA 1 BASIC 400 12,5 | 9,2 | 12,5 | 21 | 460 | 380 | 150 | 8,3 | 07 |
| SQ750.03L | STAR DELTA 1 BASIC 400 15 | 11 | 15 | 25 | 460 | 380 | 150 | 8,3 | 07 |
| SQ750.04L | STAR DELTA 1 BASIC 400 17,5 | 13 | 17,5 | 29 | 460 | 380 | 150 | 8,3 | 07 |
| SQ750.05L | STAR DELTA 1 BASIC 400 20 | 15 | 20 | 34 | 460 | 380 | 150 | 8,5 | 07 |
OPTIONALS |
|
| CODE | TYPE |
|---|---|
| OP100.04/4 | Wired lack, sequence and asymmetry of phases relay |
| OP100.04/5 | Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage |
| OP100.05/1 | Wired three-phase surge arrester type 2 |
| OP100.15/024 | Wired hour counter 24Vac 48×48 |
| OP100.16/1 | Wired analog daily timer 72×72 without reserve |
| OP100.16/2 | Wired analog daily timer 72×72 with reserve |
| OP100.18 | Wired starting delay timer (supply mains waiting) |
| OP100.19/4 | Wired module GSM 4 inputs/4 outputs |
| OP100.09/2 | Wired lithium battery 3,7Vdc 600mAh |
| OP331.230 | Wired 230Vac LEVEL control relay |
| OP100.01 | 3 level probes kit |
| OP100.17/024 | Wired 24Vac complete with socket |
| OP210.01 | Wired very low voltage input for motor klixon |
| OP200.01 | Alarm output 24Vac and pure contact |
| OP100.13/1 | Wired siren shut-off button |
| OP100.13/1/24 | Wired siren 24Vac/dc |
| OP100.13/2/24L | Wired flashing Led lamp 24Vac |
| SS100.01 | Visual and acoustic alarm indicator (BASIC ALARM VA024) |
