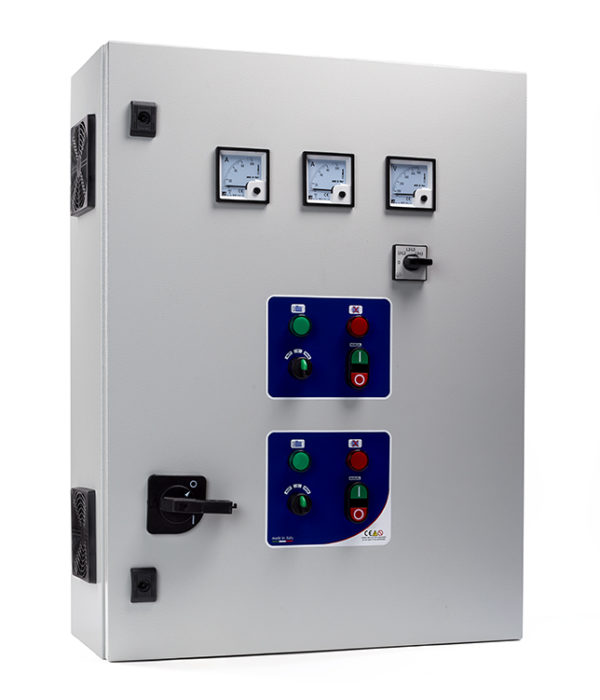

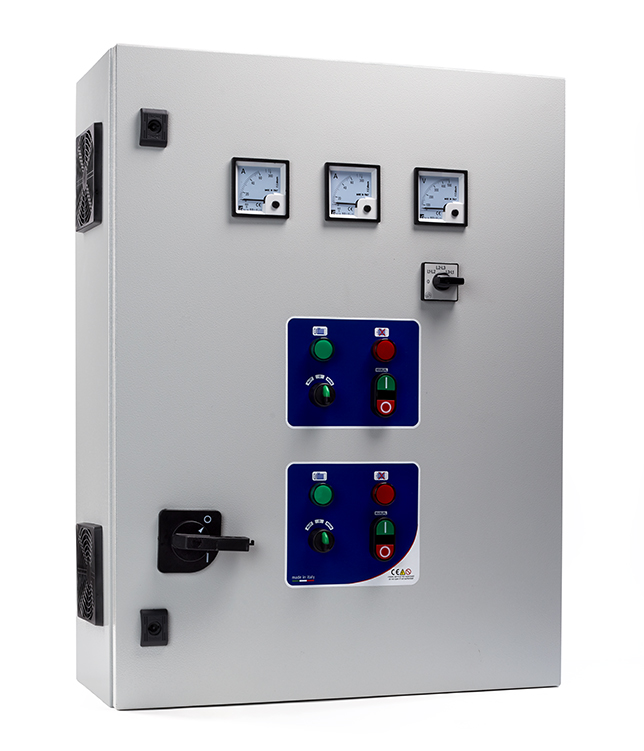

Soft start starting electromechanical control panel 2 motors with voltmeter and ammeters

  • Easy to program
  • Adjustable acceleration and deceleration ramp
Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnecting switch with door lock
  • N°2 selector switches for automatic -0- manual operation
  • N°2 start-stop buttons for manual operation
  • N°2 running Led lights
  • N°2 overload Led lights
  • Analog voltmeter 72×72
  • Voltmeter selector switch
  • N°2 analog ammeters 72×72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each  motor
  • N°2 soft start with by-pass contacts
  • Forced ventilation complete with filters (from 25Hp)
  • Thermostat for fan
  • Connection terminal board
  • External metal box
  • Protection degree IP55
  • Operating temperature -5/+40°C

ADVANTAGES

  • Adjustable acceleration and deceleration ramp by trimmer
  • Adjustable starting voltage by trimmer

INPUTS/OUTPUTS

  • N°2 very low voltage inputs for pressure switch or float switches (motor 1 minimum/maximum level)
  • N°2 very low voltage inputs for pressure switch or float switches (motor 2 minimum/maximum level)

PROTECTIONS

  • Maximum current protection for each motor with phases unbalance and alarm
  • Protection against lack of phase and missing load

THREE-PHASE 400Vac ±10% 50/60Hz
CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ712.00 SOFT START 2 400 5,5 2,2÷4 3÷5,5 2x(5÷12,5) 700 500 290 27 71
SQ712.01 SOFT START 2 400 12,5 5,5÷9,2 7,5÷12,5 2x(10÷25) 700 500 290 27 71
SQ712.02 SOFT START 2 400 17,5 11÷13 15÷17,5 2x(17÷32) 700 500 290 27 71
SQ712.03 SOFT START 2 400 20 15 20 2x(23÷38) 700 500 290 27 71
SQ712.04 SOFT START 2 400 25 18,5 25 2x(22,5÷45) 800 600 290 38 80
SQ712.05 SOFT START 2 400 35 22÷26 30÷35 2x(25,5÷63) 800 600 290 38 80
SQ712.06 SOFT START 2 400 40 30 40 2x(34,5÷72) 800 600 290 40 80
SQ712.07 SOFT START 2 400 50 37 50 2x(42,5÷58) 1000 800 370 63 103
SQ712.07/2 SOFT START 2 400 50 37 50 2x(46÷106) 1000 800 370 64 103
SQ712.08 SOFT START 2 400 60 45 60 2x(46÷106) 1000 800 370 66 103
SQ712.09 SOFT START 2 400 70 51,5 70 2x(46÷106) 1000 800 370 67 103
SQ712.10 SOFT START 2 400 80 60 80 2x(59÷134) 1200 800 370 80 122
SQ712.11 SOFT START 2 400 90 66 90 2x(59÷134) 1200 800 370 82 122
SQ712.12 SOFT START 2 400 100 75 100 2x(87÷162) 1200 800 370 84 122
SQ712.13 SOFT START 2 400 125 92 125 2x(130÷230) 1200 800 370 96 122



OPTIONALS
CODE TYPE
OP100.04/4 Wired lack, sequence and asymmetry of phases relay
OP100.04/5 Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage
OP100.05/1 Wired three-phase surge arrester type 2
OP100.15/024 Wired hour counter 24Vac 48×4
OP100.15/110 Wired hour counter 110Vac 48×48
OP100.16/1 Wired analog daily timer 72×72 without reserve
OP100.16/2 Wired analog daily timer 72×72 with reserve
OP100.18 Wired starting delay timer (supply mains waiting)
OP100.19/4 Wired module GSM 4 inputs/4 outputs
OP100.09/2 Wired lithium battery 3,7Vdc 600mAh
OP332.230 Wired 230Vac MULTI 2 control relay for pressure booster and sewage
OP210.01 Wired very low voltage input for motor klixon
OP200.01 Alarm output 24Vac and pure contact
OP100.13/1 Wired siren shut-off button
OP100.13/1/24 Wired siren 24Vac/dc
OP100.13/2/24L Wired flashing Led lamp 24Vac
SS100.01 Visual and acoustic alarm indicator (BASIC ALARM VA024)
