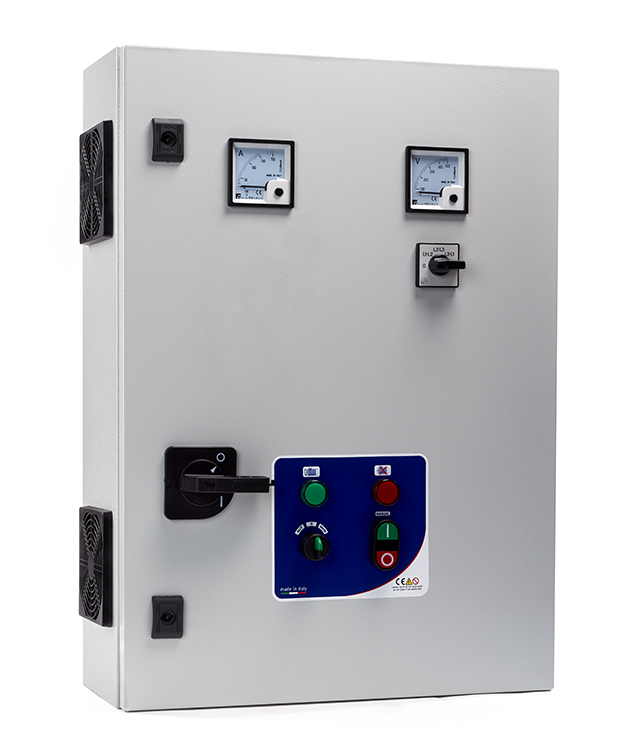

Soft start starting electromechanical control panel 1 motor with voltmeter and ammeter



  • Easy to program
  • Adjustable acceleration and deceleration ramp
Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnecting switch with door lock
  • Selector switch for automatic -0- manual operation
  • Start-stop button for manual operation
  • Running Led light
  • Overload Led light
  • Analog voltmeter 72×72
  • Voltmeter selector switch
  • Analog ammeter 72×72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Motor protection fuse
  • Soft start with by-pass contacts
  • Forced ventilation complete with filters (from 25Hp)
  • Thermostat for fan
  • Connection terminal board
  • External metal box
  • Protection degree IP55
  • Operating temperature -5/+40°C

ADVANTAGES

  • Adjustable acceleration and deceleration ramp by trimmer
  • Adjustable starting voltage by trimmer

INPUTS/OUTPUTS

  • N°2 very low voltage inputs for pressure switch or float switches (minimum/maximum level)

PROTECTIONS

  • Maximum current protection with phases unbalance and alarm
  • Protection against lack of phase and missing load

THREE-PHASE 400Vac ±10% 50/60Hz
CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ702.00 SOFT START 1 400 5,5 2,2÷4 3÷5,5 5÷12,5 500 400 230 17 50
SQ702.01 SOFT START 1 400 12,5 5,5÷9,2 7,5÷12,5 10÷25 500 400 230 17 50
SQ702.02 SOFT START 1 400 17,5 11÷13 15÷17,5 17÷32 500 400 230 17 50
SQ702.03 SOFT START 1 400 20 15 20 23÷38 500 400 230 17 50
SQ702.04 SOFT START 1 400 25 18,5 25 22,5÷45 600 400 280 22 61
SQ702.05 SOFT START 1 400 35 22÷26 30÷35 25,5÷63 600 400 280 22 61
SQ702.06 SOFT START 1 400 40 30 40 34,5÷72 600 400 280 22 61
SQ702.07 SOFT START 1 400 50 37 50 42,5÷58 700 500 290 28 71
SQ702.07/2 SOFT START 1 400 50 37 50 46÷106 700 500 290 28 71
SQ702.08 SOFT START 1 400 60 45 60 46÷106 700 500 290 29 71
SQ702.09 SOFT START 1 400 70 51,5 70 46÷106 700 500 290 30 71
SQ702.10 SOFT START 1 400 80 60 80 59÷134 1000 600 370 51 101
SQ702.11 SOFT START 1 400 90 66 90 59÷134 1000 600 370 54 101
SQ702.12 SOFT START 1 400 100 75 100 87÷162 1000 600 370 57 101
SQ702.13 SOFT START 1 400 125 92 125 130÷230 1200 800 370 80 122
SQ702.14 SOFT START 1 400 150 110 150 130÷230 1200 800 370 84 122
SQ702.15 SOFT START 1 400 180 132 180 130÷280 1200 800 370 84 122
SQ702.16 SOFT START 1 400 200 150 200 130÷356 1800 800 470 150 185



OPTIONALS
CODE TYPE
OP100.04/4 Wired lack, sequence and asymmetry of phases relay
OP100.04/5 Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage
OP100.05/1 Wired three-phase surge arrester type 2
OP100.15/024 Wired hour counter 24Vac 48×4
OP100.15/110 Wired hour counter 110Vac 48×48
OP100.16/1 Wired analog daily timer 72×72 with reserve
OP100.16/2  Wired analog daily timer 72×72 without reserve
OP100.18 Wired starting delay timer (supply mains waiting)
OP100.19/4 Wired module GSM 4 inputs/4 outputs
OP100.09/2 Wired lithium battery 3,7Vdc 600mAh
OP331.230 Wired 230Vac LEVEL control relay
OP100.01 3 level probes kit
OP100.17/024 Wired 24Vac complete with socket
OP210.01 Wired very low voltage input for motor klixon
OP200.01 Alarm output 24Vac and pure contact
OP100.13/1 Wired siren shut-off button
OP100.13/1/24 Wired siren 24Vac/dc
OP100.13/2/24L Wired flashing Led lamp 24Vac
SS100.01 Visual and acoustic alarm indicator (BASIC ALARM VA024)
For more optionals click here
