INVERTER IRIS BLUE 2

INVERTER IRIS BLUE 2

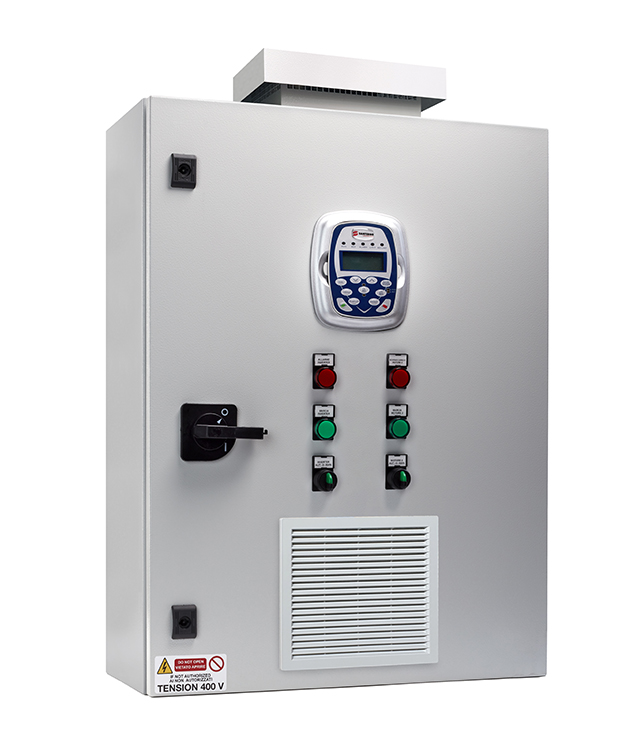

Inverter control panel + 1 fixed frequency starting with display

  • Specific software for pumping and water treatment applications
  • Alarma data logger
  • Remote control SALUPO CONNECT
Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnecting switch with door lock
  • N°2 selector switches for automatic -0- manual operation (stable)
  • N°2 running Led lights
  • Inverter alarm Led light
  • Overload Led light
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Inverter protection fuse
  • Motor protection fuse
  • Inverter IRIS BLUE with front display
  • Direct starting (up to 20Hp)
  • Soft start starting with by-pass contacts (from 25Hp)
  • Forced ventilation complete with filters
  • Extraction tower (from 50Hp)
  • Thermostat for fan
  • Connection terminal board
  • External metal box
  • Protection degree IP54
  • Operating temperature -5/+40°C

ADVANTAGES

  • Double initial ramp
  • Pipe filling control
  • Fire mode (forced operation in case of alarm)
  • Sleep/wake up mode (it prolongs the pump delay time to save energy)
  • Safe Torque Off (function for the freewheel stop)
  • Dry running with cosφ
  • Loss of pressure control
  • PID operation
  • Acceleration and deceleration ramp adjustable by trimmer (from 25Hp up)
  • Starting voltage adjustable by trimmer (from 25Hp up)

INPUTS/OUTPUTS

  • Input 4-20mA
  • Very low voltage input for external command

PROTECTIONS

  • Maximum current protection with alarm
  • Lack of phases protection with alarm
  • Earth leakage protection with alarm

THREE-PHASE 400Vac ±10% / Output 3∼400Vac 50/60Hz
CODE TYPE POWER MAX DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ717.00/01 INVERTER IRIS BLUE 2 400 5,5 2,2÷4 3÷5,5 10,5 700 500 290 33 71
SQ717.02 INVERTER IRIS BLUE 2 400 7,5 5,5 7,5 12,5 700 500 290 33 71
SQ717.03 INVERTER IRIS BLUE 2 400 10 7,5 10 16,5 700 500 290 33 71
SQ717.05 INVERTER IRIS BLUE 2 400 20 15 20 30 800 600 290 46 80
SQ717.06 INVERTER IRIS BLUE 2 400 25 18,5 25 41 800 600 290 48 80
SQ717.07 INVERTER IRIS BLUE 2 400 30 22 30 57 1000 600 370 71 101
SQ717.08 INVERTER IRIS BLUE 2 400 40 30 40 60 1000 600 370 72 101
SQ717.09 INVERTER IRIS BLUE 2 400 50 37 50 80 1350 800 470 97 123 T
N.B.: When ordering, check the power and the rated current of the motor



OPTIONALS
CODE TYPE
OP100.29/KIT GPRS 24Vac DIN board with 2m serial cable
OP100.39/KIT Ethernet 24Vac DIN board with 2m serial cable
OP331.230 Wired 230Vac LEVEL control relay
OP100.01 3 level probes kit
OP100.02/3 Potentiometer to adjust the frequency
OP200.01 Alarm output 24Vac with pure contact
OP100.05/1 Wired three-phase surge arrester type 2
OP100.22/05 Wired three-phase inductance DV/DT 5,25A with cooling fan
OP100.22/08 Wired three-phase inductance DV/DT 8,4A with cooling fan
OP100.22/11 Wired three-phase inductance DV/DT 11A with cooling fan
OP100.22/17 Wired three-phase inductance DV/DT 17A with cooling fan
OP100.22/32 Wired three-phase inductance DV/DT 32A with cooling fan
OP100.22/43 Wired three-phase inductance DV/DT 43A with cooling fan
OP100.22/68 Wired three-phase inductance DV/DT 68A with cooling fan
OP100.22/92 Wired three-phase inductance DV/DT 92A with cooling fan
AC300.11.10-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.11.16-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.11.25-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.20.01-005.00 Piezoresistive probe 4-20mA with 5m cable
AC300.20.01-010.00 Piezoresistive probe 4-20mA with 10m cable
AC300.20.02-010.20 Piezoresistive probe 4-20mA with 10m cable for sewage
For more optionals click here
