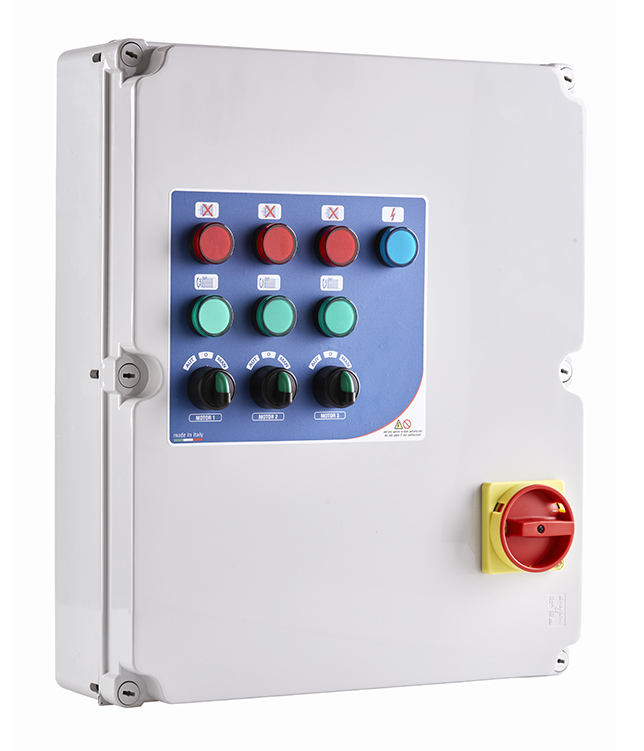

Direct starting electromechanical control panel 3 motors for booster pressure and sewage

  • Multi application control panel
  • Alternance of the motors
  • 3s delay between the starting of the 3 motors
  • Protection fuse for each motor
Category:

GENERAL SPECIFICATIONS

  • Operating voltage 230Vac ±10% 50/60Hz (SA673.xx)
  • Operating voltage 400Vac ±10% 50/60Hz (SA683.xx)
  • General disconnecting switch with door lock
  • N°3 selector switches for automatic -0- manual operation (stable)
  • Mains supply Led light
  • N°3 running Led lights
  • N°3 overload Led lights
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each motor
  • N°3 contactors
  • N°3 thermal relays (internal reset)
  • Connection terminal board
  • External thermoplastic box
  • Cable glands
  • Protection degree IP65
  • Operating temperature -5/+40°C

ADVANTAGES

  • Configuration via Dip switch
  • Alternance of the 3 motors
  • 3s delay between the starting of the 3 motors

INPUTS/OUTPUTS

  • N°2 very  low voltage inputs for pressure switch or float switches (motor 1 minimum/maximum level)
  • N°2 very  low voltage inputs for pressure switch or float switches (motor 2 minimum/maximum level)
  • N°2 very  low voltage inputs for pressure switch or float switches (motor 3 minimum/maximum level)

PROTECTIONS

  • Maximum current protection for each motor with alarm

SINGLE-PHASE 230Vac ±10% 50/60Hz
CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SA673.00L EVO 3 MULTI 230 0,5 0,37 0,5 3x(2,5÷4) 460 380 150 10,7 07
SA673.01L EVO 3 MULTI 230 0,75 0,55 0,75 3x(4÷6,5) 460 380 150 10,7 07
SA673.02L EVO 3 MULTI 230 1 0,75 1 3x(6,3÷10) 460 380 150 10,7 07
SA673.03L EVO 3 MULTI 230 1,5 1,1 1,5 3x(6,3÷10) 460 380 150 10,7 07
SA673.04L EVO 3 MULTI 230 2 1,5 2 3x(9÷14) 460 380 150 10,7 07
SA673.05L EVO 3 MULTI 230 3 2,2 3 3x(13÷18) 460 380 150 10,7 07



THREE-PHASE 400Vac ±10% 50/60Hz
CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SA683.00L EVO 3 MULTI 400 0,5 0,37 0,5 3x(1,1÷1,6) 460 380 150 10,7 07
SA683.01/02L EVO 3 MULTI 400 1  0,55÷0,75 0,75÷1 3x(1,6÷2,5) 460 380 150 10,7 07
SA683.03L EVO 3 MULTI 400 1,5 1 1,5 3x(2,5÷4) 460 380 150 10,7 07
SA683.04L EVO 3 MULTI 400 2 1,5 2 3x(4÷6,5) 460 380 150 10,7 07
SA683.06/07L EVO 3 MULTI 400 4  2,2÷3  3÷4 3x(6,3÷10) 460 380 150 10,7 07
SA683.09L EVO 3 MULTI 400 5,5 4 5,5 3x(9÷14) 460 380 150 10,7 07
SA683.10L EVO 3 MULTI 400 7,5 5,5 7,5 3x(13÷18) 460 380 150 10,7 07
SA683.11L EVO 3 MULTI 400 10 7,5 10 3x(17÷23) 460 380 150 10,7 07
SA683.12L EVO 3 MULTI 400 12,5 9,2 12,5 3x(20÷25) 460 380 150 10,7 07
SA683.13/14L EVO 3 MULTI 400 17,5  11÷13  15÷17,5 3x(24÷32) 460 380 150 11 07



OPTIONALS
CODE TYPE
OP100.02/0 Automatic -0- manual selector switch (from stable to unstable)
OP100.02/1 Wired start-stop button
OP100.04/4 Wired lack, sequence and asymmetry of phases relay
OP100.04/5 Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage
OP100.05 Wired single-phase surge arrester type 2
OP100.05/1 Wired three-phase surge arrester type 2
OP100.15/024 Wired hour counter 24Vac 48×48
OP100.16/1 Wired analog daily timer 72×72 without reserve
OP100.16/2 Wired analog daily timer 72×72 with reserve
OP100.19/4 Wired module GSM 4 inputs/4 outputs
OP100.09/2 Wired lithium battery 3,7Vdc 600mAh
OP210.01 Wired very low voltage input for motor klixon
OP200.01 Alarm output 24Vac and pure contact
OP100.13/1 Wired siren shut-off button
OP100.13/1/24 Wired siren 24Vac/dc
OP100.13/2/24L Wired flashing Led lamp 24Vac
SS100.01 Visual and acoustic alarm indicator (BASIC ALARM VA024)
For more optionals click here
